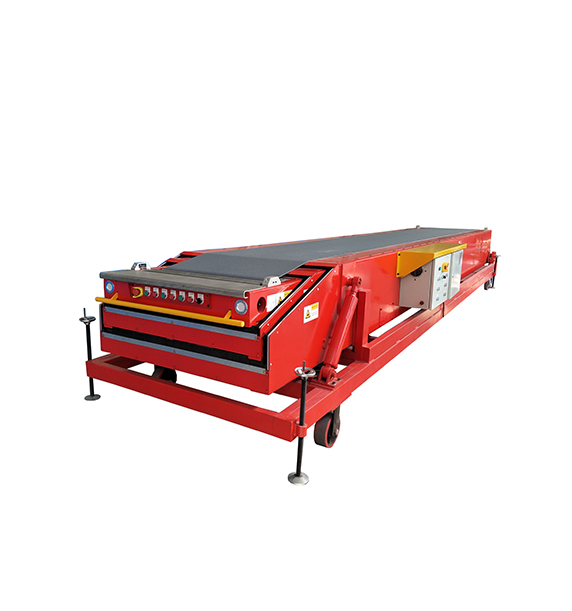

What is movable type telescopic belt conveyor?

The mobile telescopic conveyor expands and contracts freely in the length direction, and the length of the conveyor is controlled at any time.

It can transport materials in two-way operation, and can be used together with other conveying equipment and material sorting system to realize the automatic production of material in and out of the warehouse or vehicle loading and unloading. It has been widely used in various industries. It is often used in the trough transportation of fully mechanized coal mining face or high-grade common coal mining face under the coal mine, and it can also be used in the roadway excavation system.

Movable telescopic conveyor parameters

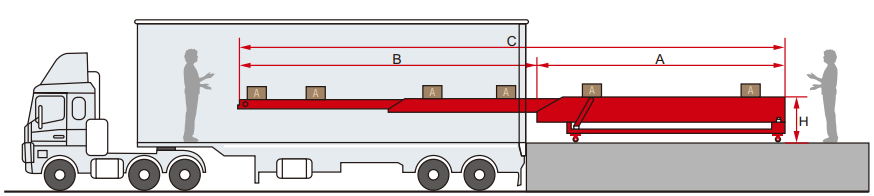

Standard Type Mobile Telescopic Belt Conveyor Unit: mm
Model	Sections	Fixed (A)	Extended (B)	Total (C)	Height (H)	Belt Width
NARMC-3S-6/8	3	6000	8000	14000	1000	600 / 800
NARMC-3S-7/9	3	7000	9000	16000	1000	600 / 800
NARMC-4S-6/12	4	6000	12000	18000	1200	600 / 800
NARMC-4S-7/14	4	7000	14000	21000	1200	600 / 800

Movable telescopic belt conveyor configuration

LED light:24 volt safety voltage LED lighting is used to provide sufficient brightness for loading and unloading cargo inside the compartment.

Safety protection device:When the anti-collision rod touches an object or person, the equipment expands and retreats automatically for a certain distance, so as to protect the cargo and personnel.

Front control button:Control start,stop,emergency stop, lighting and other function.

Transition protection roller:The float design can protect the loading and unloading personnel.

Side control button:Freely adjust the extended length of the equipment to ensure the operator moves and discharges the goods in the most suitable position.

What are the characteristics of telescopic conveyor?

• Wide application ,excellent performance:it is widely used in e-commerce express logistics centers and factory logistics centers to help improve loading capacity and reduce handling costs.
• good adaptability,reliability and durability: according to the loading and unloading requirements, the length is free to expand and contract, and the operator can adjust the machine to be at the most comfortable distance all the time, reduce labor intensity and improve work efficiency.
• According to the loading and unloading requirements, the length is free to expand and contract, and the operator can adjust the machine to be at the most comfortable distance all the time, reduce labor intensity and improve work efficiency. The telescopic conveyor adds an expansion device to the ordinary belt conveyor, so that the conveyor can be expanded in the extension of the main working platform.
• Users can adjust the facilities according to their own requirements and adjust the length of the conveyor at any time. The lifting device is equipped at the base of the main body, and the user can also adjust and control the elevation of the operation platform of the conveyor loader at any time, which can better connect with all kinds of vehicles.
• The conveying and loading machine can be used alone and transported in two directions.
• It can also be organically integrated with elevators, roller conveyors, fixed belt conveyors, production assembly lines and other equipment to form a three-dimensional automatic conveying system for efficient operation

About PT. NAR

PT . NAR is a company that provides all kinds of conveying equipment and conveying accessories. And we have different kinds of conveying equipment, such as telescopic belt conveyor, roller conveyor, ship loader and so on. Our technicians can provide satisfactory solutions according to customer needs.

Precautions for conveyor operation

• Before using the conveyor, check whether the operating parts, belt buckles and bearing devices are normal and whether the protective equipment is complete. The tension of the tape must be adjusted to an appropriate degree before starting.
• The belt conveyor shall be started without load. The material can be fed only after the operation is normal. It is forbidden to feed before driving. When several conveyors are running in series, they should start from the discharge end in sequence. Only after all of them are in normal operation can they be fed.
• No pedestrians or passengers are allowed on the conveyor belt.
• Stop feeding before stopping the machine, and stop the machine only after all the materials stored on the belt are unloaded.
• It is forbidden to pull the belt by hand when the belt slips, so as to avoid accidents.

Advantages of our service

• Competitive price and quality from our own factory
• Approved by ISO9001, CE, SGS every year
• Best service with 24 hour`s reply
• Flexible payment with T/T,L/C , paypal, kunlun bank, etc
• Smooth production ability
• Quick delivery and standard exporting package
• OEM/ODM
