Motorized Pulley For Belt Conveyor
What is motorized pulleys?
Advantage of motorized pulleys
Precautions for pulley system
The motorized pulley is a new type of driving device that places the motor and reducer together inside the roller body. It is mainly used in fixed and mobile belt conveyors to replace the traditional motor, and the reducer is a separate driving device outside the driving drum. The electric pulley can improve the efficient transportation of the conveying system with few maintenance problems.
What is motorized pulleys?
The motorized pulley is an efficient gear motor drive device. Its main body rotates around a fixed shaft and has a motor protected by a metal shell. The motor adopts a lubrication system and the external roller is driven by electricity.

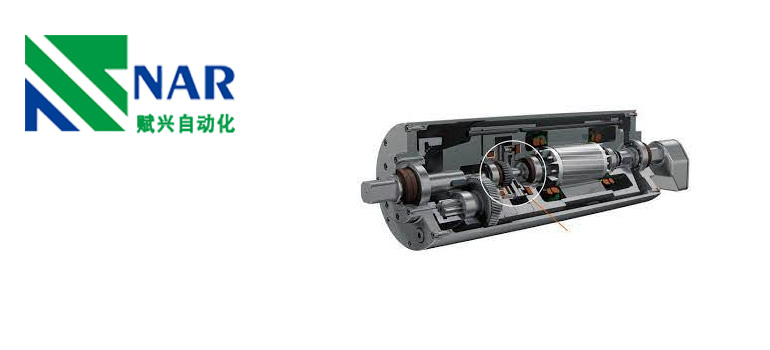

The entire internal structure of the motorized pulley includes the motor, gear and bearing, and the outer drum acts as the traction wheel to drive the conveyor belt forward. The gearbox transmits the torque to the housing through the gear rim, and provides an efficient motor with very small friction loss.
According to the cooling mode, the electric roller can be divided into air cooled electric roller, oil cooled electric roller and oil immersed electric roller. The electric roller includes three driving modes: fixed shaft gear drive, cycloidal gear drive and planetary gear drive. The motor can be installed inside or outside the electric pulley.
Advantage of motorized pulleys
The motorized pulley has a closed protective shell, so it is not affected by dust, grease, water and other factors.
Compared with traditional belt pulley, motorized pulley has more advantages. It is widely used in metallurgy, chemical industry, grain, transportation and other industries.
The following will show you the advantages of pulleys.
Enhanced security:
The motorized pulley has a closed protective shell, the motor is completely independent, and there is no gear and chain outside. The outer wheel of the pulley is stationary all the time, and the only moving parts are the shell and bearing seat of the electric pulley.
This structure greatly reduces the safety risk of operators.
Reduce energy and operating costs
Compared with the traditional conveyor pulley, the electric pulley is composed of pulley and fixed support, and does not need too many complicated parts. In addition, the electric pulley is lighter. Its working efficiency is up to 96%, which can reduce energy consumption and save up to 30%.
Improve space utilization:
Traditional conveyor pulleys have externally mounted gear boxes and motors, while the components of the electric pulleys are all in the enclosed drum housing.
The electric pulley also does not need too many additional devices, so it takes less space.
Low maintenance cost:
The use of wheel change will eventually bring more benefits. After use, it is only necessary to replace the lubricating oil and oil seal in the specified period, and maintenance is not required at other times.
High efficiency:
The efficiency of the electric pulley from the motor to the housing (pulley face) is usually much higher than that of the traditional drive, because it has less friction loss, so it can achieve a mechanical efficiency of up to 97%.
Noise reduction:
Low noise is the demand of modern chemical plants. The electric drive pulley is made of machine ground and surface hardened steel. This is also affected by the enclosed housing and high-quality gears, eliminating external noise factors.
For some specific places, low noise is important for the machine.
Precautions for pulley system
For users who use mechanical rollers, motorized pulley usually require minimum maintenance. However, in rare cases of failure, the entire mechanism must be replaced.
Although your conveyor belt service provider will facilitate motor maintenance, in order to minimize the downtime of factory production, it is the best measure to prepare a spare motor at the machine operation site.
Maintenance of worn parts and components on lubricated chains and lubricated bearings, standard pulley systems will take up maintenance time on the facility. For these systems, the Facility Manager shall ensure that spare parts are available in the event of failure and that the conveyor service provider is on call to provide repair services.
If you want to learn more information, you can contact PT.Nar.
