The expansion mechanism is added to the ordinary belt conveyor to allow the belt conveyor to expand and contract freely in the length direction.Users can adjust the button according to their own requirements to control the length of the conveyor at any time.
On models equipped with automatic lifting device, the user can also control the height of the conveyor end at any time. The telescopic belt conveyor is mainly used in vehicle loading and unloading and material transmission system with telescopic requirements.
Configuration of telescopic conveyor
- LED light:24 volt safety voltage LED lighting is used to provide sufficient brightness for loading and unloading cargo inside the compartment.
- Safety protection device:When the anti-collision rod touches an object or person, the equipment expands and retreats automatically for a certain distance, so as to protect the cargo and personnel.
- Front control button:Control start,stop,emergency stop, lighting and other function.
- Transition protection roller:The float design can protect the loading and unloading personnel.
- Side control button:Freely adjust the extended length of the equipment to ensure the operator moves and discharges the goods in the most suitable position.
What are the types of telescopic belt conveyors?
The telescopic belt conveyor can be divided into fixed telescopic conveyor, mobile telescopic conveyor, swing arm telescopic conveyor and lifting telescopic conveyor.
The following is a description of the four telescopic conveyor types.
Fixed telescopic conveyor
Fixed telescopic belt conveyor is an automatic loading and unloading device, which can be directly extended to containers and other vehicles.
The operator can operate the telescopic machine anywhere by using the buttons. Hydraulic lifting device can be added as required to reach the required height.
Fixed telescopic conveyor is simple and safe to operate, easy to install and use. It is only necessary to provide the employees with the operation manual and guidance of the standard solution to get started.

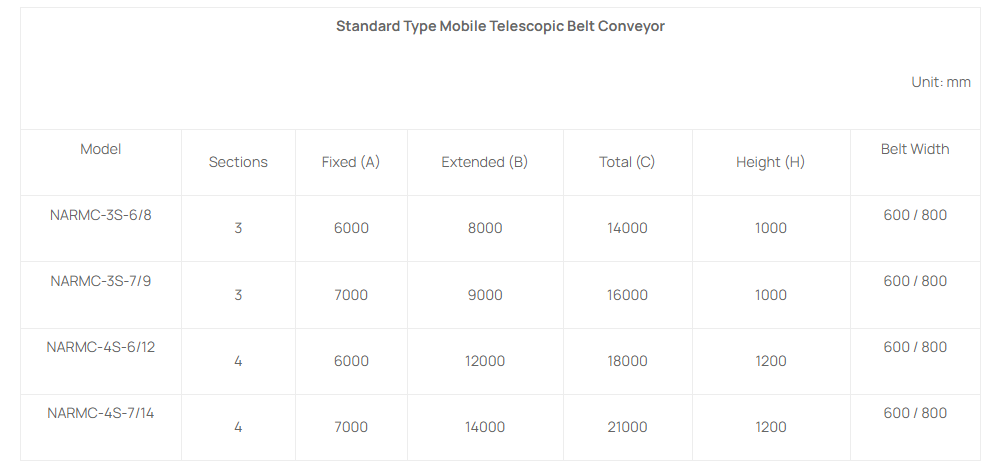

Movable telescopic conveyor
Movable telescopic belt conveyor is one of the four types of telescopic conveyor.The movable telescopic belt conveyor can be flexibly used in vehicles and containers. He can configure specific applications according to engineering requirements.
In fact, each telescopic belt conveyor will be a custom conveyor. Mobile telescopic belt conveyor is no exception.
In mobile conveyors, counterweights are installed at the rear to prevent the conveyor from tipping. However, the mobile telescopic belt conveyor can still be easily operated by a single operator.

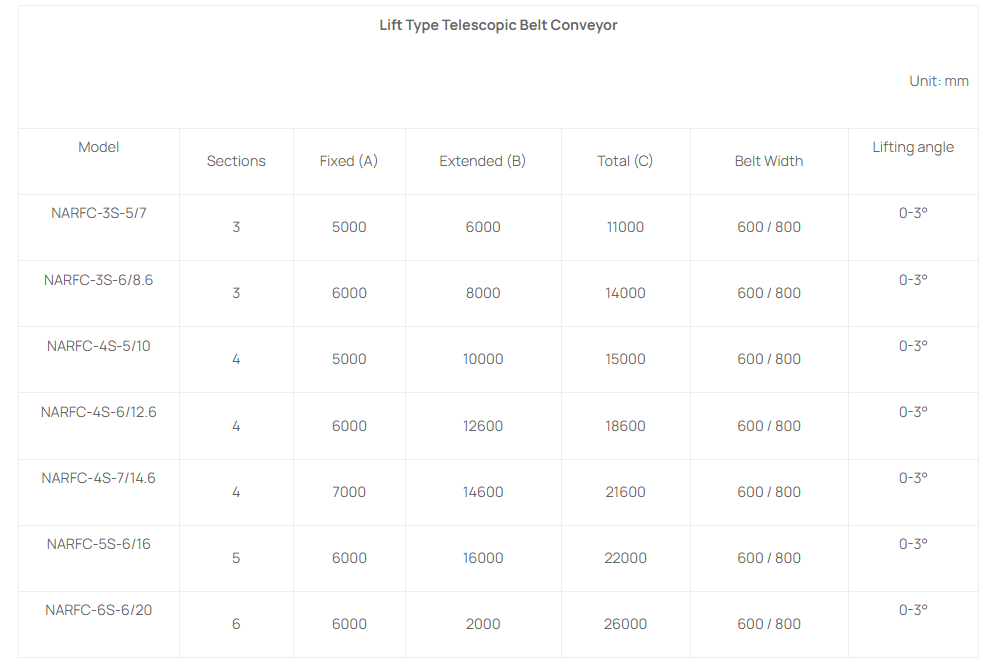

Lift telescopic belt conveyor
The lifting telescopic conveyor can stretch back and forth to meet the requirements of loading and feeding positions at different distances; The tail of the conveying department can also be equipped with a grain throwing machine according to the customer’s needs to throw the grain farther and greatly expand the scope of replenishment loading; It has the functions of hydraulic lifting, electric expansion, electric walking, grain throwing, etc. Mobile lifting conveyors are widely used for automatic loading and unloading of trailers, trucks, trucks and containers in warehouses, ports, airports and docks.
Mobile lift conveyors can speed up the loading and unloading of trailers and containers. In a wide range of applications for modern enterprises to save forklift movement and reduce costs.

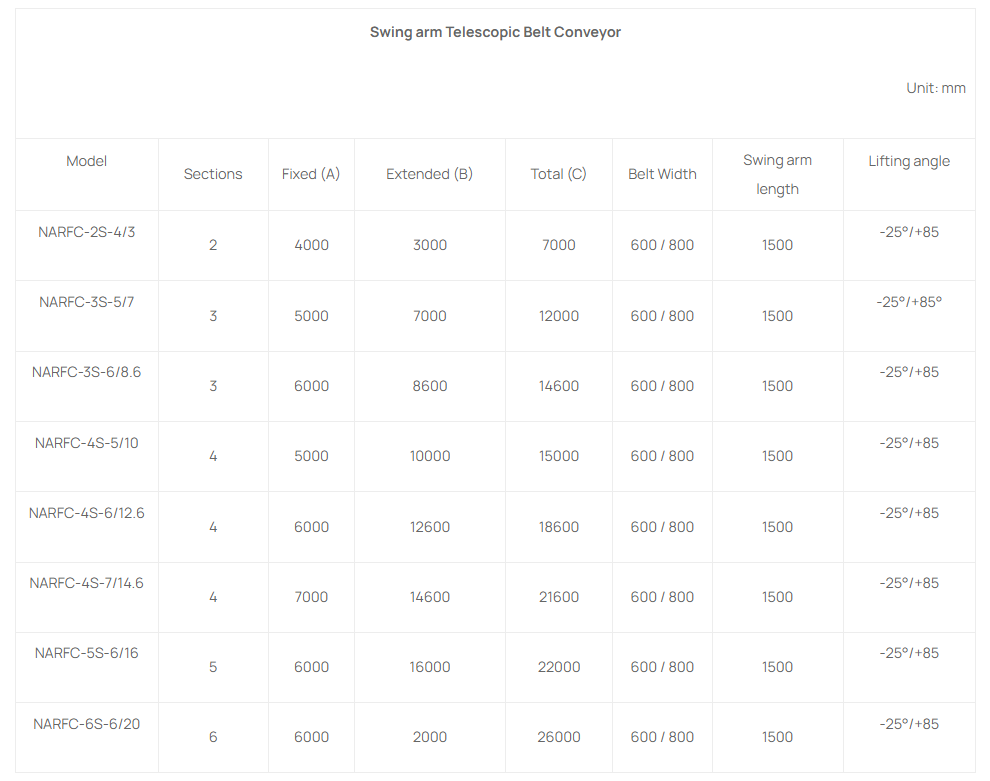

Swing arm telescopic belt conveyor
The height and length of the swing arm lifting conveyor can be adjusted according to the needs. The palletizing of materials can be completed faster with manual assistance. Two way work allows automatic loading, unloading and packaging transfer of material production
What are the characteristics of the telescopic conveyor?
- Wide application ,excellent performance:it is widely used in e-commerce express logistics centers and factory logistics centers to help improve loading capacity and reduce handling costs.
- good adaptability,reliability and durability: according to the loading and unloading requirements, the length is free to expand and contract, and the operator can adjust the machine to be at the most comfortable distance all the time, reduce labor intensity and improve work efficiency.
- According to the loading and unloading requirements, the length is free to expand and contract, and the operator can adjust the machine to be at the most comfortable distance all the time, reduce labor intensity and improve work efficiency. The telescopic conveyor adds an expansion device to the ordinary belt conveyor, so that the conveyor can be expanded in the extension of the main working platform.
- Users can adjust the facilities according to their own requirements and adjust the length of the conveyor at any time. The lifting device is equipped at the base of the main body, and the user can also adjust and control the elevation of the operation platform of the conveyor loader at any time, which can better connect with all kinds of vehicles.
- The conveying and loading machine can be used alone and transported in two directions.
- It can also be organically integrated with elevators, roller conveyors, fixed belt conveyors, production assembly lines and other equipment to form a three-dimensional automatic conveying system for efficient operation
- telescopic conveyor can be directly pushed into the carriage
- l When the conveyor is running, it can realize the forward and reverse loading of goods and improve the loading and unloading efficiency.
- l The conveyor is easy to move and can be adjusted in multiple directions according to the operation requirements.
Advantages brought by telescopic conveyor?
The use of telescopic belt conveyor not only shortens the back and forth distance of manual material handling, but also reduces the time for loading and unloading goods. In addition, it also reduces labor intensity, reduces cargo damage, reduces handling costs, and improves work efficiency.
The telescopic belt conveyor was first used in the logistics express and tobacco industries.
Different types of telescopic conveyor have their own characteristics. You can choose a more suitable one according to your needs.
